  • Overview

    1. The module has its own voltage stabilization circuit, the working voltage is 5V~36V, and it is easy to connect.

    2. The use of advanced digital filtering technology can effectively reduce measurement noise and improve measurement accuracy.

    3. At the same time, we provide various host computers, operating instructions, and development manuals that users need to minimize the research and development time for various needs.

    4. Support 485 interface. It is convenient for users to choose the best connection method. The serial port rate is adjustable from 4800bps to 230400bps, the cut-off frequency is adjustable from 0 to 100Hz, and the detection period is adjustable from 1 to 100Hz.

    5. Application fields: It can be widely used for bearing vibration measurement and real-time monitoring of rotating machinery such as submersible pumps, fans, steam turbines, coal mills, oxygen generators, generators, centrifuges, compressors, water pumps, and motors.

    6. Three-axis displacement, three-axis speed, three-axis angle, and three-axis frequency output allow users to measure vibration and impact in an all-round way and determine whether the measured object (motor, water pump) is damaged. If there is a machine failure caused by bearing wear, bearing cracking, poor dynamic balance, or misalignment, the vibration sensor can detect the failure in advance and provide an early warning to prevent the machine from continuing to work under adverse conditions and causing damage, thereby causing economic losses.

    7. Multiple installation methods: magnetic connection, threaded connection. Strong and stable, easy to install and disassemble.


    Specifications


    Parameter

    Condition

    Minimum value

    Default

    Maximum value

    Communication Interface

    485Interface

    4800bps

    9600bps

    230400bps

    Output content


    On-chip time, 3-axis vibration speed, 3-axis vibration angle, 3-axis vibration displacement, temperature

    Measuring range


    Measuring range: vibration speed: 0~50mm/s, vibration angle: 0~180°, vibration displacement: 0~30000um

    Accuracy


    <F.S±5%



    Testing cycle


    1Hz

    100Hz

    100Hz

    utoff frequency


    1Hz

    10Hz

    100Hz

    Operating temperature


    -40℃


    85℃

    Storage temperature


    -40℃


    85℃

    Shock proof




    20000g

    Protection level




    IP67



    Application

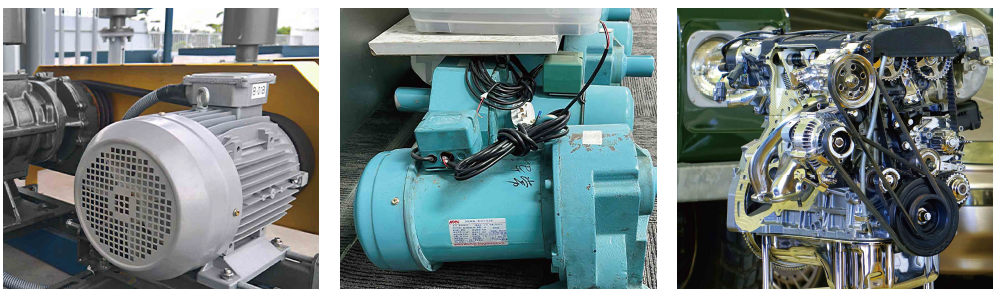

                       Water pump                                          Motor                                                 Engine
