1. Background

With the increasing development of the power industry, the hazards of tilt monitoring of power towers are becoming more and more serious. How to do a good job due to severe weather endangering the safety of power facilities, accidents caused by insufficient safety distances and rough construction, and pole inversion accidents caused by soil removal under or near power pole towers? Insufficient safety measures for felling and pruning trees have caused safety accidents, which has become a new research and development topic.

WITMOTION has in-depth applications in the direction of transmission line monitoring. It has developed a transmission line pole/tower tilt monitoring system. This system mainly provides online monitoring of tower lateral tilt, longitudinal tilt, and other data, and combines line design parameters to provide early warning information for tower tilt. , providing practical basis for the line operation and design departments. Through early warning, the operation department can timely grasp the safe operation of the tower, reduce accidents caused by tower tilt, assist the operation department to find the fault point of the tower and judge the fault type.

2. WITMOTION Solutions

The WITMOTION tilt sensor collects data on the lateral tilt, longitudinal tilt, compound tilt, etc. of the tower, the shaking amplitude and disconnection of the transmission line, and the settlement and tilt of the tower base to the monitoring center through 4G/GPRS. The monitoring center monitors the lateral tilt. , longitudinal tilt and other status parameters for data storage, display, statistical reports and analysis combined with the tower's own design parameters to complete the multi-parameter early warning function of the tower tilt, which can prevent it in advance. In the face of man-made or natural disasters, many people want to use human power to solve the problem of power damage, but human power is far from enough. How can we effectively avoid this problem and reduce losses as much as possible.

Based on its unique features and functions, WITMOTION can prevent the monitoring of power towers, lines, and tower bases without the need for human power. The tilt of transmission line towers is mainly achieved by using the following functions:

①、Real-time monitoring of the inclination status of towers; monitoring of the status of transmission lines; monitoring of settlement of transmission tower foundations

②、Use the operator's existing 4G/GPRS network to build a remote data transmission channel, so that the transmission line online monitoring system monitoring center can monitor remote site data in real-time.

③、The system is constructed using multi-layer shielding technology. The casing and sensor casing are made of anti-magnetic metal materials to effectively shield electromagnetic interference. Shielded, waterproof, dustproof, reliable connection. Extremely strong anti-interference and lightning strike resistance, ensuring stable and reliable system operation.

④、Adopt low-power design and dynamically adjust the power consumption of the equipment to meet power-saving requirements.

Tilt Detection:：

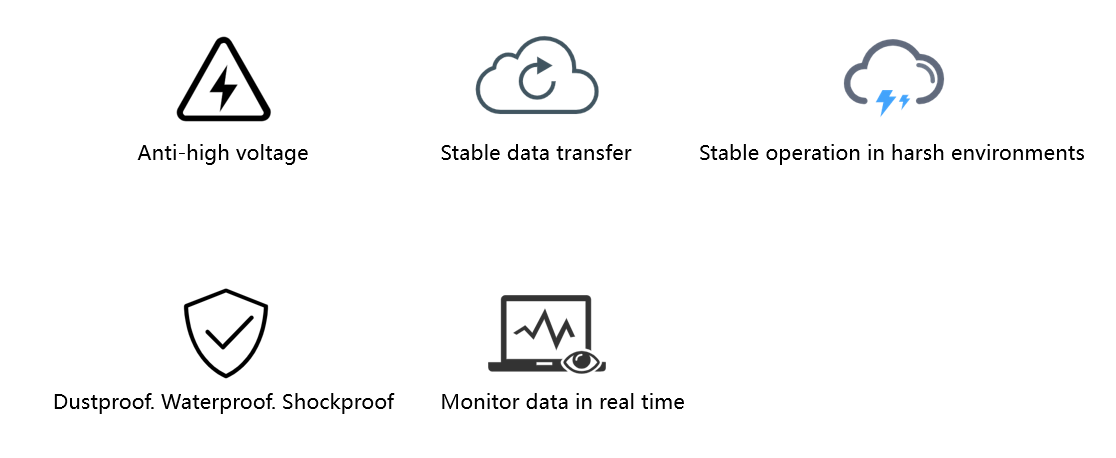

Used for wire tower inspection, long-term work in harsh environments, and can meet the following requirements:

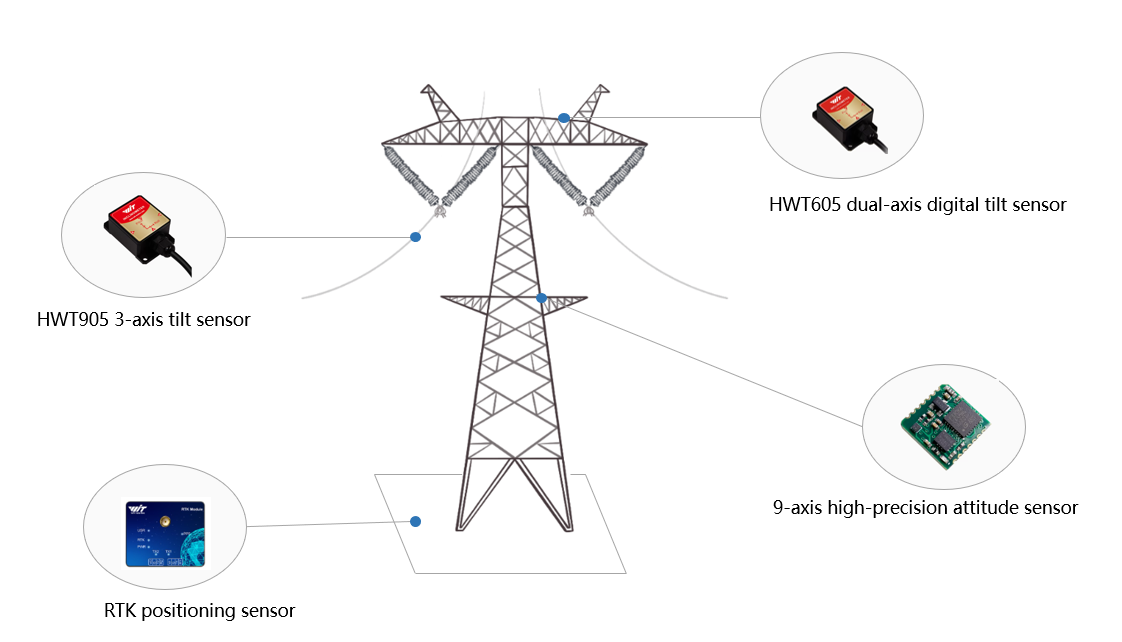

Solution Images：
