Overview

1. Standard micro interface, directly connected to PC to view data. Keep the serial port output for GPS+BD/GPS+Glonass inertial navigation, which can be used in underground parking lots, poor satellite signals, and tunnels to ensure accurate driving. Modular structure, compact size, easy to embed in car navigation system.

2. Communication protocol: plug-and-play standard communication protocol NEMA0183;

3. Engineering installation: There is no installation angle requirement, which is convenient for users to install on the vehicle;

4. Sub-meter level: supports RTCM2.3 protocol/sub-meter level navigation in complex environments;

5. Navigation technology: autonomous switching between integrated navigation and pure inertial navigation technology. Excellent positioning and navigation function, high sensitivity, 32 channels, supports single system positioning of BDS/GPS/GLONASS satellite navigation system, and any combination of multi-system joint positioning.

6. Dual interfaces: 1. TYPE-C interface, plug and play to directly connect to PC to view data. 2.XH2.54x4Pin interface, convenient for embedding user system equipment.

7. Built-in antenna detection circuit, antenna overcurrent protection, front SAW, external LNA, 3D sensor.

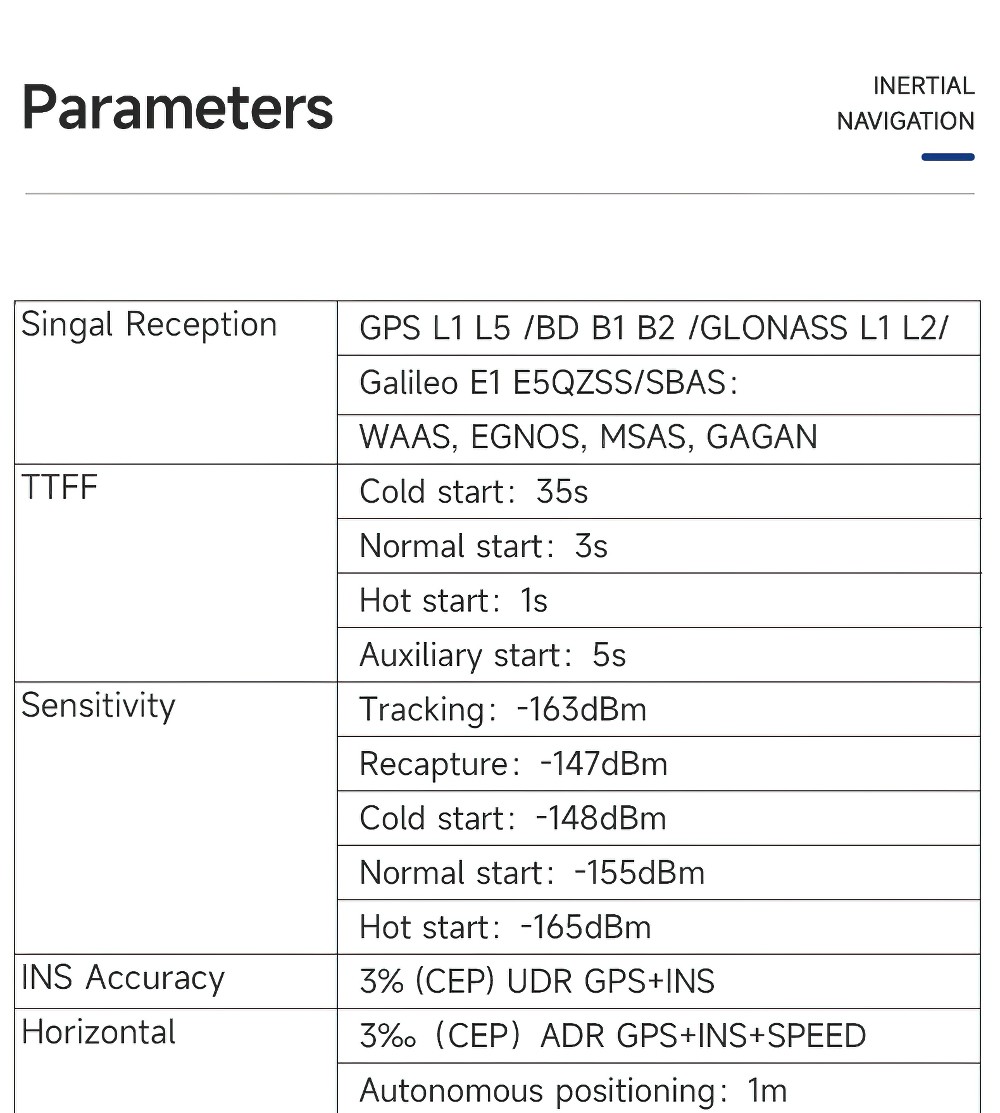

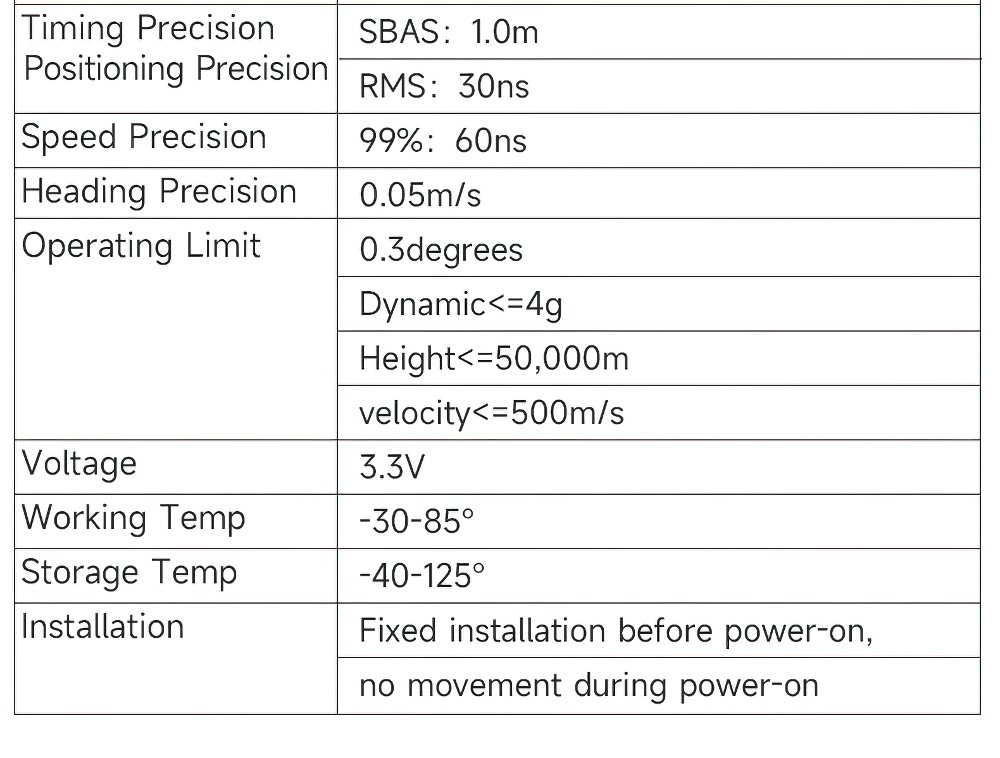

Specifications

Application

Download

Video
