Overview

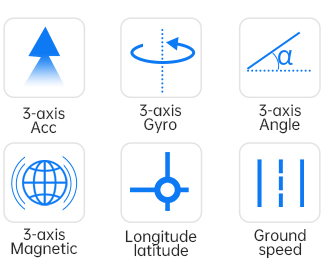

1. The module integrates high-precision gyroscopes, accelerometers, and geomagnetic field sensors, and uses high-performance microprocessors and advanced dynamics calculation and Kalman dynamic filtering algorithms to quickly solve the current real-time motion posture of the module.
2. Using advanced digital filtering technology, it can effectively reduce measurement noise and improve measurement accuracy.
3. An attitude solver is integrated inside the module, and combined with the dynamic Kalman filter algorithm, it can accurately output the current attitude of the module in a dynamic environment. The attitude measurement accuracy is 0.2°, the stability is extremely high, and the performance is even better than some professional inclination angles. instrument.
4. The Z-axis heading angle is added to the geomagnetic sensor filter fusion, which solves the cumulative error caused by the drift of the gyroscope integral in the 6-axis algorithm, and can output heading angle data stably for a long time.
Specifications
Parameters | Condition | Typical value |
Measuring range | ±16g | |
Resolution ratio | ±16g | 0.01(g/LSB) |
RMS noise | Bandwidth=100Hz | 0.75~1mg-rms |
Static zero drift | Place horizontally | ±20~40mg |
Temperature drift | -40°C ~ +85°C | ±0.15mg/℃ |
Bandwidth | 5~256Hz |
Parameters | Condition | Typical value |
Measuring range | ±2000°/s | |
Resolution ratio | ±2000°/s | 0.05(°/s)/(LSB) |
RMS noise | Bandwidth=100Hz | 0.028~0.07(°/s)-rms |
Static zero drift | Place horizontally | ±0.5~1°/s |
Temperature drift | -40°C ~ +85°C | ±0.005~0.015 (°/s)/℃ |
Bandwidth | 5~256Hz |
Parameters | Condition | Typical value |
Measuring range | ±2Gauss | |
Resolution ratio | ±2Gauss | 0.0667mGauss/LSB |
Parameters | Condition | Typical value |
Measuring range | X:±180° | |
Y:±90° | ||
Inclination accuracy | 0.2° | |
Resolution ratio | Place horizontally | 0.0055° |
Temperature drift | -40°C ~ +85°C | ±0.5~1° |
Parameters | Condition | Typical value |
Measuring range | Z:±180° | |
Heading accuracy | 9-axis algorithm, magnetic field calibration, dynamic/static | 1°(Without interference from magnetic fields)【1】 |
6-axis algorithm, static | 0.5°(Dynamic integral cumulative error exists) 【2】 | |
Resolution ratio | Place horizontally | 0.0055° |
Note:【1】Please perform magnetic field calibration in the testing environment before use to ensure that the sensor is familiar with the magnetic field in the environment. During calibration, please stay away from magnetic interference.
【2】In some vibration environments, there will be cumulative errors. The specific errors cannot be estimated and are subject to actual testing.
Index | Technical Parameters | |
Signal reception | BDS/GPS/QZSS/GLONASS | |
Cold start TTFF | ≤32s | |
Hot start TTFF | ≤1s | |
Recapture TTFF | ≤1s | |
Cold start capture sensitivity | -148dBm | |
Hot start capture sensitivity | -156dBm | |
Recapture sensitivity | -160dBm | |
Tracking sensitivity | -162dBm | |
positioning accuracy | <2.5m(CEP50) | |
Speed measurement accuracy | <0.1m/s(1σ) | |
Location update rate | 2Hz | |
protocol | NMEA0183 | |
Maximum height | 18000m | |
Maximum speed | 515m/s | |
Maximum acceleration | 4g |
Application
· Large-scale agricultural automatic farming
· Drones, manned aircraft
·Human motion tracking/capture
· Robots, autonomous guided transport vehicles
· Pedestrian navigation
· Unmanned driving/assisted driving
·Military, intelligent weapons and equipment
