Overview
Lorawan communication, ultra-long-range coverage, support for remote viewing of data.
Support RS485 interface, multiple sensor types (vibration sensor, tilt sensor) .

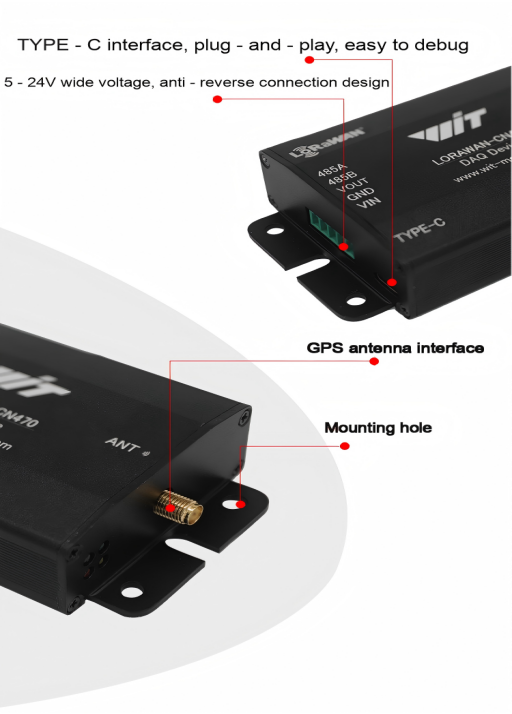

Support TYPE-C interface, easy to connect computer operation module.
5-36V power input support for industrial use.
Fully automatic access to the network, only one parameter configuration, easy to operate.
It is equipped with Viter Vibration/tilt sensor, free from analysis and processing, and can transmit data immediately after power on.
It supports the dual mechanism of regular report and threshold trigger report, and dynamically responds to the status of
the device to ensure the real-time and integrity of the monitoring data.
Data output content:
tilt sensor: Frame header, sensor ID, Angle, alarm ID.
Vibration sensor: frame header, sensor ID, vibration speed, vibration frequency, vibration displacement, alarm identification.
Specifications
Parameter | ||
Current | 30mA (no load without external sensor) | |
Volume | 108mm * 64mm * 25.5 mm | |
External Interface | Angle XY: -90~90°, Angle Z: 0~180° | |
| Access Mode | Otaa and ABP are supported | |
| Working Mode | Support CLASS-A, CLASS-C two kinds of node types | |
| Data Processing | Angle Trigger Alarm, vibration trigger alarm | |
| Communication Distance | Measured urban road distance of 1.5 km | |
Type-C serial communication | 115200(fixed) | |
| 485 communication Baud Rate | 4800-230400 optional | |
| Operating Temperature | -40℃~85℃ | |
| Storage Temperature | -40℃~85℃ | |

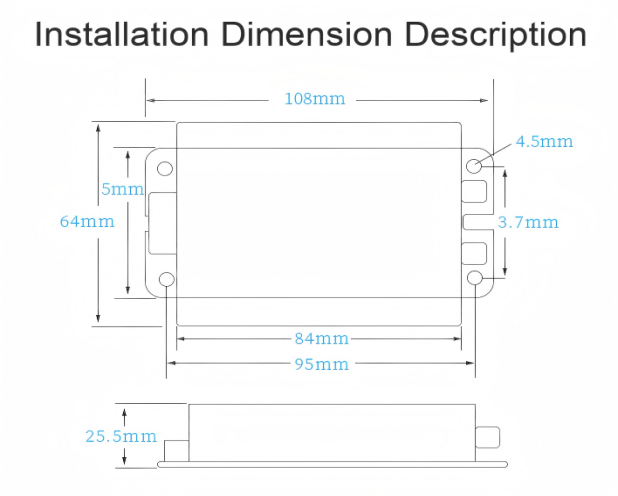

Product size
Signs | Status | Description |
Power Lamp (red) | Always Bright | Power on (power light) |
Network Light (Green) | Flash once a second | Indicates that the network is |
Working Light (orange) | Always Bright | Module work lamp |
Sensor acquisition lamp(Blue) | Flash once a second | No sensors connected |
It flashes four times a second | Sensors online |
