Overview
【Rock-solid Data Output】Temperature, 3-axis displacement, 3-axis velocity, and 3-axis frequency output meet the user's needs for comprehensive measurement of vibration and impact, and determine whether the measured object (motor, water pump) is damaged.
【Sensor Fusion System】MEMS-based triaxial sensor: integrates attitude dynamics core engine and high dynamic Kalman filter, which can effectively reduce measurement noise and improve measurement accuracy.
【Industrial Robust Design】IP68 aluminum alloy housing + EMI immunity: 9~36V wide voltage input, vibration-optimized to ensure stable operation in harsh environments from -40℃ to 85℃. In case of machine malfunctions caused by bearing wear, bearing cracking, poor dynamic balance, or misalignment, the vibration sensor can detect the fault in advance and issue a warning, preventing the machine from continuing to operate under adverse conditions and causing damage, thus avoiding economic losses.
【Algorithm Advantage of WIT-MOTION】10-year R&D legacy: Proprietary dynamic fusion algorithm + Kalman filtering engine significantly reduces development cycles, achieving low-noise output and exceptional bias stability.
【Precision Calibration】Customized high-resolution turntable + self-developed algorithms: High-precision calibration system enhances measurement accuracy through advanced equipment and proprietary calibration techniques.
【Comprehensive Development Documentation】Full toolkit for R&D efficiency: Includes PC software, development manuals, and sample codes to minimize development time for diverse requirements, accelerating product deployment
Specifications
Parameter | Condition | Minimum value | Default | Maximum value |
Communication interface | 485 | 4800bps | 115200bps | 230400bps |
| CAN | 3K | 250K | 1M | |
Output content | On-chip time, 3-axis acceleration, 3-axis vibration velocity, 3-axis vibration displacement, 3-axis vibration frequency, temperature | |||
Range | Vibration speed: 0~100mm/s, vibration displacement: 0~30000um, vibration frequency 5-2000hz, temperature: -20℃~85℃ | |||
Accuracy | <FS±4% | |||
| Detection cycle | 1HZ | 10HZ | 200HZ | |
| Cutoff frequency | 0HZ | 10HZ | 200HZ | |
Operating temperature | -20 ℃ | 85℃ | ||
Storage temperature | -40 ℃ | 85 ℃ | ||
Impact resistance | 20000g | |||
Protection level | IP67 | |||
Vibration velocity: the speed at which the vibration point of an object moves when it vibrates
Amplitude: The amplitude of the vibration point when the object vibrates (vibration displacement)
Vibration frequency: The number of times an object shakes per unit time during vibration. The vibration frequency measurement range is 1Hz~2000Hz

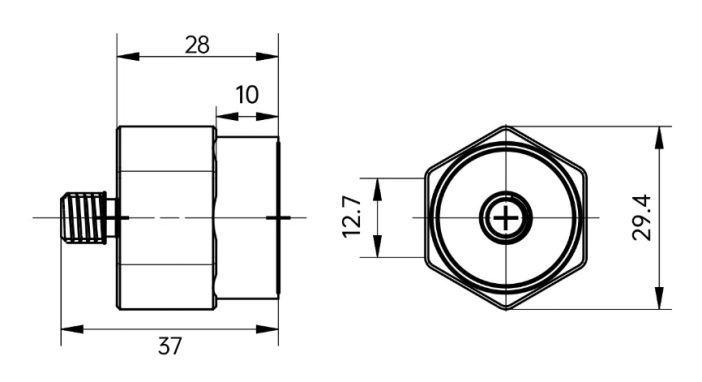

Product size

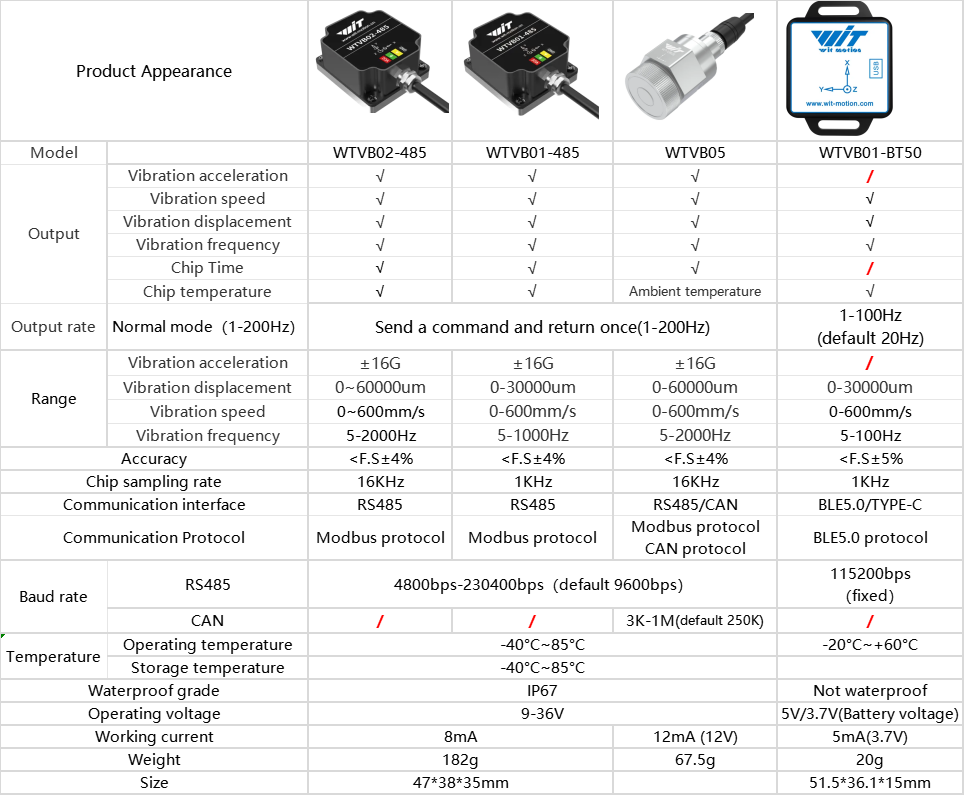

Parameter comparison
