Overview

【Rock-solid Data Output】Three-axis displacement, three-axis velocity, and three-axis frequency output meet the user's needs for comprehensive measurement of vibration and impact, and determine whether the measured object (motor, water pump) is damaged.

【Sensor Fusion System】MEMS-based triaxial sensor: integrates attitude dynamics core engine and high dynamic Kalman filter, which can effectively reduce measurement noise and improve measurement accuracy.

【Industrial Robust Design】IP68 aluminum alloy housing + EMI immunity: 9~36V wide voltage input, vibration-optimized to ensure stable operation in harsh environments from -40℃ to 85℃. In case of machine malfunctions caused by bearing wear, bearing cracking, poor dynamic balance, or misalignment, the vibration sensor can detect the fault in advance and issue a warning, preventing the machine from continuing to operate under adverse conditions and causing damage, thus avoiding economic losses.

【Algorithm Advantage of WIT-MOTION】10-year R&D legacy: Proprietary dynamic fusion algorithm + Kalman filtering engine significantly reduces development cycles, achieving low-noise output and exceptional bias stability.

【Precision Calibration】Customized high-resolution turntable + self-developed algorithms: High-precision calibration system enhances measurement accuracy through advanced equipment and proprietary calibration techniques.

【Comprehensive Development Documentation】Full toolkit for R&D efficiency: Includes PC software, development manuals, and sample codes to minimize development time for diverse requirements, accelerating product deployment

Specifications

Basic parameters

Parameter Description

1. Output content

· Vibration velocity: the speed at which the vibration point of an object moves when it vibrates

· Vibration displacement: Amplitude, the jitter amplitude of the vibration point when the object vibrates

· Vibration frequency: the number of times an object vibrates per unit time when it vibrates

· Temperature: Chip operating temperature, not external temperature

2. Accuracy

<FS±4%: indicates 4% of the measuring range. Taking vibration displacement as an example, when the actual displacement value is 300um, the data error is 4% of 300um. When the actual value is 3000um, the data error is 4% of 3000um.

Note: The product has requirements for vibration frequency and is not suitable for low-frequency vibration scenarios. The vibration frequency must be at least 5Hz to ensure data reliability.

Product size

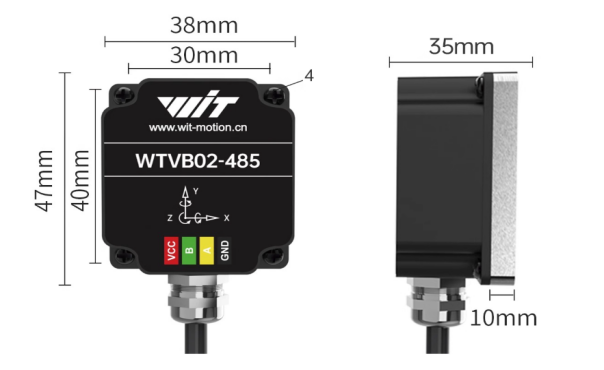

WTVB02-485 product dimensions:

Parameter comparison

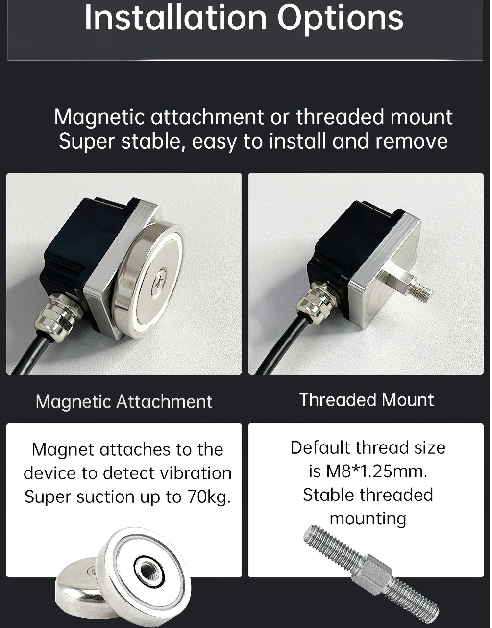

Installation

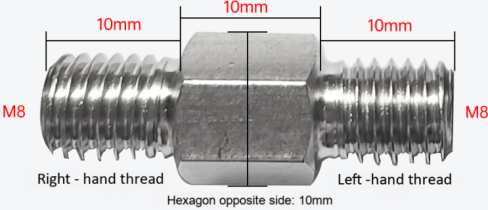

Thread size

Application

Download

Video
